| Brand Name : | SQ |
| Certification : | EPA |
| Model Number : | SQ150GK-2 |
| Delivery Time : | Within 30 days after deposit received |
| Payment Terms : | T/T 50% inadvance, balance before shipment |
| Supply Ability : | 1000 PCS a month |

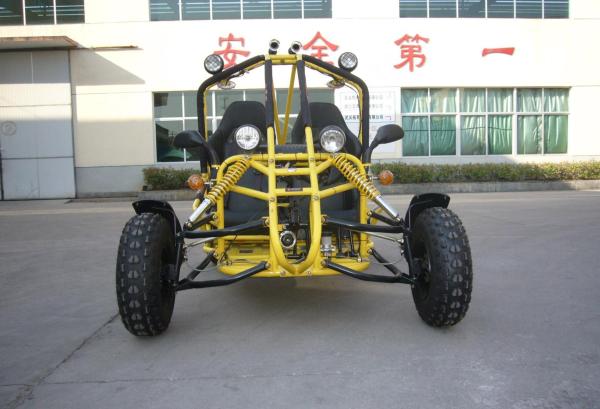

Our SQ150GK Go Kart is designed with the latest technology is suitbale for recreation and cometition. Most of the frame is made of steel tube structure. SQ150GK is started with electronic starter. Besides for the recreation and competition, this go kart could help drivers keep fit and keep the mind clearly. During driving, please take care of safety. ( Emission standard is comply with the terms of the EPA 40CFR requirements) | |
| Model | SQ150GK |
| Product Type | 150cc Go Kart/Dune buggy |
| Certification | EPA |
| Overall Dimension (L*W*H) | 2450mm*1510mm*1580mm |
| Engne Type | Single cylinder, 4 stroke, air cooled |
| Fuel Type | Unleaded petrol above 90# |
| Bore * Stroke | 57.4mm*57.8mm |
| Compression Ratio | 10.3:1 |
| Cylinder working volume | 149.6ml |
| Power | 6.0kw/3600r/min |
| Engine max speed | 8500r/min |
| Max torque/Rotate speed | 8.3Nm/(6000±100)r/min |
| Mini idle load ratate speed | (1700±100)r/min |
| Clutch connecting rotate speed | (2000±200)r/min |
| Starter | Electronic start |
| Battery | 12V/9Ah |
| Gearbox | CVT |
| Wheelbase | 1885mm |
| Mini ground clearance | 100mm |
| Mini turning diameter | ≤8m |
| Max loading | 160kg (2 person) |
| Max speed | 60km/h |
| Gasoline consumption | ≤4.5L/100km |
| Starter | ≤15s |
| Climbing degree | 18° |
| Tire (Front/Rear) | 21*7-10; 22*11-10 |
| Driving model | Chain drive |
| Brake system | Disc brake by foot |
| Steering system | Steering wheel |
| Fuel tank | 6L |
| N.W/G.W | 260kg/328kg |
| Colors Available | Yellow, Blue, Green, Red, Black, Gray |
