| Brand Name : | SQ |
| Certification : | CE, EPA |
| Model Number : | SQ110NF |
| Delivery Time : | 30 Days |
| Payment Terms : | T/T 50% inadvance, balance before shipment |
| Supply Ability : | 1000 PCS a month |

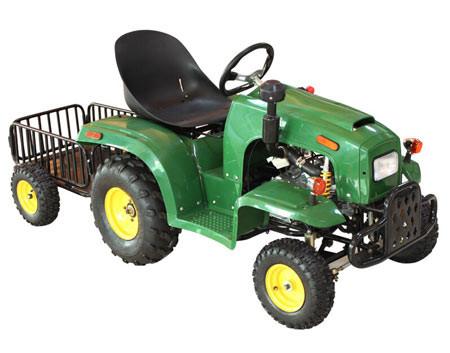

Our Nongfu car SQ110NF designed with the latest technology is suitbale for recreation and cometition. It is equipped with Water-cooled 110CC, single-cylinder, 4 stroke engine and convenient electric start. It is fixed with front and rear shock absorber to improve comfort during driving. Its front wheel is fixed with drum type brake and the rear wheel with top quality hydraulic disc type brake to render safe and reliable braking. The car is deluxe, artistic, dynamic, and attractive. Most of the frames are made of steel tube structure. During driving, please take care of safety. | |
| Model | SQ110NF |
| Product Type | 110CC Mini Tractor |
| Certification | CE & EPA |
| Overall Dimension (L*W*H) | 1320*70*80mm |
| Fuel Type | Unleaded petrol above 90# |
| Wheelbace(mm) | 860mm |
| The maximum speed (km/h) | 40km/h |
| Igition type | C.D.I |
| Engine type | Air-cooled 110cc,single cylinder, 4 stroke |
| Engine model | 152FMH |
| Engine Displacement | 107ml |
| Bore * Stroke | 52.4*49.5mm |
| Engine rated power/corresponding speed | 4.7Kw(8500r/min) |
| Maximum engine torque | 6.5N.m /6000r/min |
| Compression ratio | 9.1:1 |
| Type of carburetor | Plunger type PZ24 |
| Clutch Type | Manual waterish multichip |
| Type of plug | A7RTC |
| Type of front/rear shock absorber | Hydraulic shock absorber |
| Type of vent silencer | Cylinder type silencer |
| Petrol tank capacity | 6.5L |
| Transmission output model | Chain |
| Mini stable idle speed | 1500 ± 150 r/min |
| Tire tread | Front 790mm Rear 823mm |
| Size of front/rear tire | 19*7.00-8/13*7.00-8 |
| Integral mass | 110kg |
| Rated loading capacity | 200kg |
| Loading Capacity | 30PCS/20FT,60PCS/40FT,60PCS/40HQ |
| Colors Available | Red, Green |
